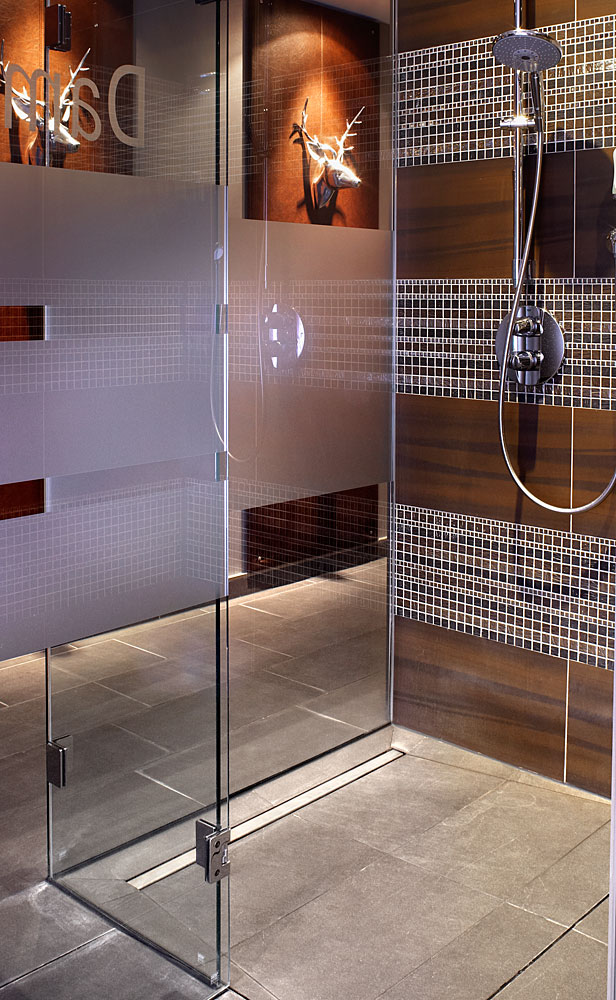

Trench Drain Bases

Wedi's pre-sloped shower base, features the ONLY fully sealed and factory integrated waterproof linear drain assembly.

The integrated drain ensures your installation is not exposed to the risk commonly associated with bonding flange/taping installation-type single drain products.

The level perimeter of these shower bases guarantees a perfect installation when recessing the base into a subfloor where a flush to the floor entry is required. The large, tileable and sloped areas around the drain make the tile installation clean and professional.

These unique prefabricated tileable units allow water to drain away through a narrow gap between the cover plate and adjacent tiling.


Description/Dimensions
*All sizes include drain

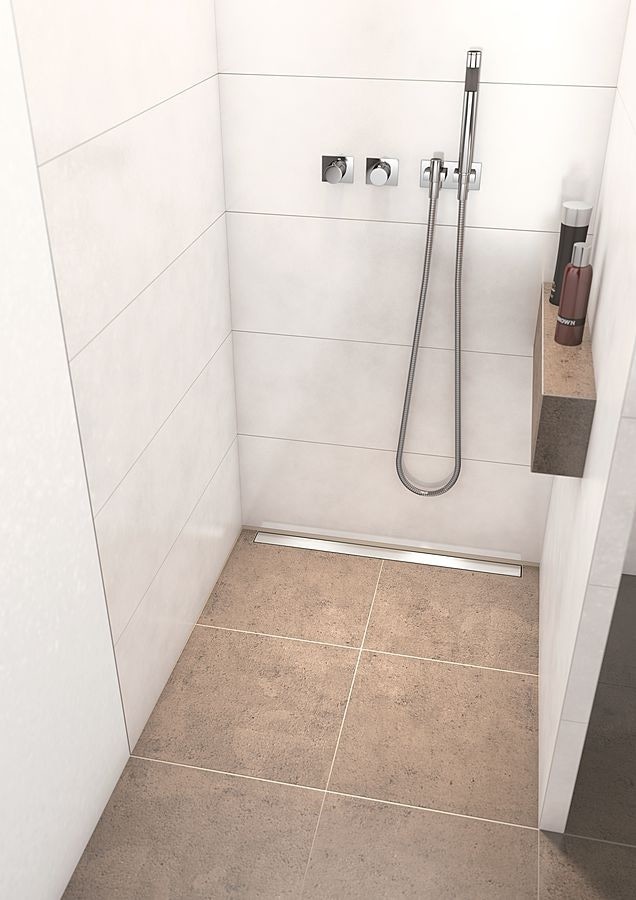

RIOLITO NEO

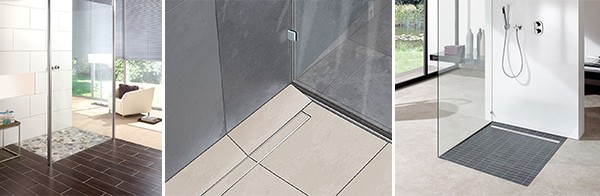

RIOLITO

‣ Fundo Riolito Neo, Line Module - 32"x5.75"
(Channel length = 27.5")

‣ Fundo Riolito Neo, Line Module - 48"x5.75"
(Channel length = 43.3125")
‣ Fundo Riolito Neo, Extension Module - 32" x 66.75"
‣ Fundo Riolito Neo, Extension Module - 48" x 66.75"

‣ Fundo Riolito - 3'x5' - 44" drain
‣ Fundo Riolito - 4'x6' - 44" drain
‣ Fundo Riolito - 4'x5' - 24" drain
‣ Fundo Riolito - 32"x5' - 24" drain
